1.0mm 1.5mm 100% Virgin Material ASTM Anti-Seepage Waterproof Impermeable Smooth Textured LDPE LLDPE HDPE Geomembrane for Landfill Mining Liner Geomembrane Pond liner Technical Parameter (GB standard) |
| Spec
Properties | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | 0.5mm | 0.75mm | 1.0mm | 1.25mm | 1.5mm | 2.0mm | 2.5mm |
| Tensile Properties
(each direction) (≥)
.yield strength
.break strength
.yield elongation
.break elongation |
7KN/m
10KN/m
--
600%
|
10KN/m
15KN/m
--
600%
|
13KN/m
20KN/m
11%
600%
|
16KN/m
25KN/m
11%
600%
|
20KN/m
30KN/m
11%
600%
|
26KN/m
40KN/m
11%
600%
|
33KN/m
50KN/m
11%
600%
|
| Density(≥) | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc | 0.940g/cc |
| Puncture Restistance (≥) | 120N | 180N | 240N | 300N | 360N | 480N | 600N |
| Carbon Black Content | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon black Dispersion | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) | Noted(1) |
| Tear Resistance (≥) | 56N | 84N | 115N | 140N | 170N | 2255N | 280N |
| Oxidative Induction Time(OIT)
Standare OIT(≥) |
60min.
|
60min.
|
60min.
|
60min.
|
60min.
|
60min.
| |
Geomembrane Pond liner Basic Details
Geomembrane pond liner
1.Geomembrane pond liner Main Thickness:0.1mm,0.2mm,0.3mm,0.5mm, 0.75mm,1.0mm,1.5mm,2.0mm,3.0mm,4.0mm,5.0mm
2.Geomembrane pond liner Main Width:4m, 5m, 5.8m, 6.0m, 7m, 8m,10m
3.Geomembrane pond liner Main Length:50m/100m
4.Geomembrane pond liner Main Color: black, white, blue, green
5. Geomembrane pond liner Optional surface: Textured or Smooth surface.
6.Geomembrane pond liner Material:HDPE, LDPE,LLDPE,EVA
7. Certificate & Test: ISO, TUV,SGS
8.Quality Control: Third party test and factory lab test
HDPE Geomembrane pond liner is produced from high density polyethylene resin by film-blowing process, adding carbon black, antioxidant, anti-aging and UV-resistance component. Now it is the most widely used products for solid waste containment (such as landfill liners), mining and water containment applications.
Geomembrane Pond liner Characteristics:
1. Good flexibility
2. For service temperature range:-70°C~110°C
3. Corrosion resistance, aging resistance
4. Excellent environmental stress cracking resistance property
5. High tensile strength and elongation
Geomembrane Pond liner Main Features:
1.UV resistance
2. Anti-seepage;
3. Isolation
4. High tearing resistance
5. Puncture-resisting
HDPE Geomembrane Pond liner Application:
(1)Aquaculture:
Using the geomembrane anti-seepage feature; geomembrane liners can be used as fish ponds, shrimp pond, tank liner and others.
(2)Landfill:

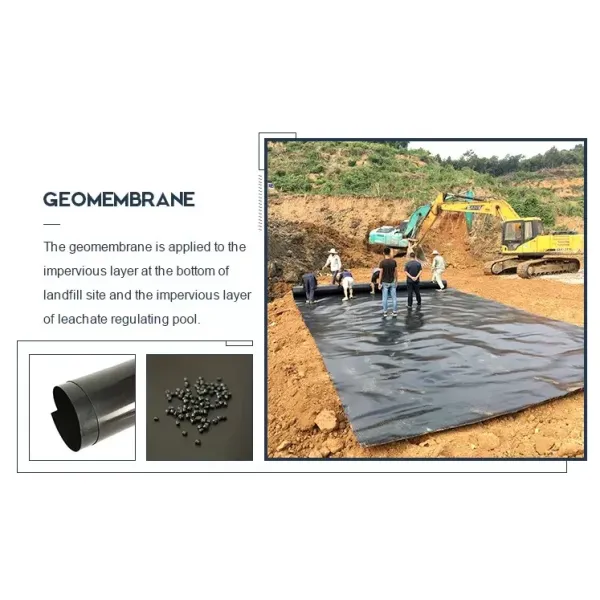

HDPE geomembrane is the most widely used in landfill anti-seepage engineering material. The use of main parts of the bottom of the landfill liner, landfill sealing cover, leachate regulating pool liner, etc.
(3)Water Treatment System :
HDPE geomembrane is applied to the adjustment of the power plant and sewage treatment plants pool;and a series of water treatment systems.
(4)Mining:
HDPE geomembrane suitable mining: washing pool, pool heap leaching, heap yard, dissolving tank, tank, storage area, the bottom line of the tailings seepage control, etc
Geomembrane Pond liner Construction Method 1. The slope shall be laid in order from top to bottom. Don't pull it too tight.
2. Tow adjacent longitudinal joints should not be in a horizontal line, should bestaggered more than 1m each other.
3. Longitudinal joints should be more than 1.50m away from the dam foot and bending foot, and should be located on the plane.
4. When the slope is laid, the direction of spreading film should be basically parallel to the slope line.
5. The construction, first of all to use small diameter sand or clay levelingbase, and then laid the geomembrane. The geomembrane should not be stretched too tight, and the part of the soil bured at both ends is corrugated. A transitional layer of about 10cm is laid on the geomembrane with sand or clay.
FAQ
1.Are you manufacturer or trade company?
We Zhonglu are a professional geosynthetic products manufacture, we will provide you with top-class service.
2. What's the order process?
a.Inquiry--- The more detailed information you provide, the more accurate product we could provide you.
b. Quotation---Resonable quotation with clear specifications.
c. Sample confirmation---Sample could be sent before the final ordering.
d. T/T 30% in advanced, and the balance could be paid before shipment.
e. Production---Mass production.
f. Shipping--- By sea, air or courier. Detailed picture of package could be provided.
3. How long is your delivery time?
Generally it is 3-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
4. How does your factory do regarding quality control?
"Quality is priority." We always attach great importance to quality controlling from the beginning to the end.
5.What's the payment method you accept?
T/T, L/C,D/P etc.
Professional geosynthetics manufacturer
Anhui Zhonglu Engineer Materials Co., Ltd
Angela:86-18095658976
